Ceiling Height Calculator for a Home Gym
A barbell overhead press needs roughly your height times 1.21, plus about 8.9 inches for the top of a loaded 45 lb plate, plus 2 inches of margin. A five foot ten inch lifter therefore needs about 96 inches, which is exactly a standard 8 foot ceiling.
Ceiling height is the constraint that decides a home gym build, and almost nobody checks it before the rack arrives. This calculator takes your height and your lowest measured clearance and tells you which lifts fit, which need a variation, and which rack heights are actually available to you.
| Movement | Needs | Fits? |
|---|
If the table above ruled out a full cage, a 73.5 inch squat stand is the standard answer. It clears a seven foot basement with enough room to lift the bar out of the J-hooks, it still carries a four figure load rating, and it gives up only the pull-up bar and the enclosed safety of a cage. Pair it with spotter arms and do not bench alone to failure.
How the numbers are calculated
Every requirement below is built from your height, because limb length scales with it closely enough for a planning tool. The one number people miss is the plate. When a barbell is directly overhead, the plates hang on the sleeves at the same height as the bar, so the highest point in the room is not the bar, it is the top edge of the plate, roughly 8.9 inches above the bar centre for any 45 lb plate.
| Movement | Bar or hand height | Add for plates and margin | Notes |
|---|---|---|---|
| Standing barbell overhead press | height x 1.21 | plate radius + 2 in | The lift that decides most basements |
| Push press or jerk | height x 1.27 | plate radius + 2 in | Bar is driven above the lockout position |
| Snatch or overhead squat | height x 1.32 | plate radius + 2 in | Highest barbell position there is |
| Standing dumbbell press | height x 1.21 | 5 in | No sleeve, so much friendlier overhead |
| Pull-up or chin-up | height x 1.18 | 9 in | Head travels above the bar at the top |
| Kettlebell American swing | height x 1.29 | 6 in | Bell height above the hands |
| Box jump, 24 in box | height x 1.00 | 28 in | Box plus flight plus head margin |
| Jump rope | height x 1.06 | 14 in | Rope arc, not your head |
| Back squat and bench press | height x 0.87 | plate radius | Effectively never ceiling limited |

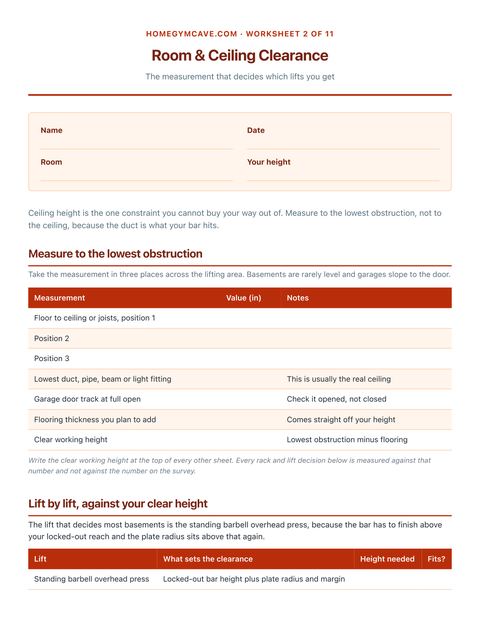

Measure to the lowest obstruction, not the ceiling
In an unfinished basement the drywall height is irrelevant. What stops a bar is a duct run, a steel beam, a sprinkler head or a light fixture, and those are commonly four to ten inches below the joists. Walk the room with a tape and record the clearance over the rack footprint specifically. It is very common to find one joist bay that is three inches taller than the room average, and three inches is often the entire difference between pressing overhead and not.
Do the same in a garage. Garage door tracks, opener rails and the door itself in the raised position all eat the centre of the bay, which is usually exactly where you wanted the rack. Many garage builds end up against a side wall for this reason, and a folding wall mounted rack exists partly because of it.
What to do when the ceiling wins
Losing the strict overhead press does not cost you a shoulder program. Three substitutions cover almost all of it:
- Landmine press. The bar travels forward and up on an arc rather than vertically, so it fits comfortably under seven feet. It is also easier on shoulders that do not like a strict overhead position.
- Half kneeling or seated press. Kneeling drops the whole movement by roughly ten to twelve inches. Seated on an incline bench drops it further and adds back support.
- Incline press. At 45 to 60 degrees you keep most of the overhead pressing stimulus with the bar path angled away from the ceiling entirely.
For pulling, a low ceiling that blocks a rack mounted pull-up bar usually still allows a doorway bar, a wall mounted bar positioned near the tallest joist bay, or a rack mounted lat pulldown, which is the honest answer for most basements under seven feet six inches.
Rack height, and the assembly clearance nobody mentions
Published rack heights are the assembled dimension. You also need room to stand the frame up during assembly, which for a full cage means tilting an 84 inch structure into place. If your clearance is within about two inches of the rack height, plan to assemble it lying down and raise it with a second person, or buy a rack that ships as two half frames.
Typical heights, so you can shop by clearance rather than by hope:
| Rack type | Typical height | Ceiling needed | Pull-up bar? |
|---|---|---|---|
| Short squat stand | 70 to 74 in | 76 in | No |
| Tall squat stand | 80 to 84 in | 86 in | Usually |
| Folding wall mounted rack | 80 to 92 in | rack + 2 in | Usually |
| Half rack | 84 to 90 in | rack + 2 in | Yes |
| Full power cage | 82 to 93 in | rack + 2 in | Yes |
Related tools and guides
- Gym space planner, for the floor footprint once the height works
- Exercise ceiling height chart, the same numbers as a lookup table
- Rack height and clearance chart, by rack type
- Low ceiling workout solutions, the full substitution list
- Basement gym build guide, ceiling, floor loading and noise together
Frequently asked questions
What ceiling height do I need for a home gym?
Eight feet of clear height covers a standard power rack and lets most people under about six feet tall press a barbell overhead. Seven feet is workable if you drop the barbell overhead press and switch to landmine and incline pressing. Below seven feet you are looking at a squat stand rather than a full cage, and pull-ups become a doorway or a floor variation. Measure to the lowest obstruction, not the highest point of the ceiling.
Can I overhead press in a basement with a 7 foot ceiling?
Usually not with a barbell. At lockout a barbell sits roughly 1.21 times your height off the floor, and the top of a loaded 45 lb plate adds nearly nine inches on top of that. A person five feet eight inches tall therefore needs about 93 inches, which is seven feet nine inches. Landmine presses, incline presses and seated dumbbell presses all fit under seven feet, and a half kneeling press buys back about ten inches.
How much ceiling height do pull-ups need?
Plan on your height times 1.18 for the bar itself, plus roughly seven inches of head travel above the bar at the top, plus a couple of inches of margin. For a five foot ten inch lifter that lands near seven feet eight inches of clear ceiling. Joists, ductwork and light fixtures usually decide this rather than the drywall, so measure to the lowest thing above the bar and remember that a kipping or explosive pull-up needs more.
Do bumper plates change how much ceiling height I need?
They change it slightly. A 45 lb bumper plate and a 45 lb cast iron plate are both about 17.7 inches across, so both add roughly 8.9 inches above the bar centre when the bar is overhead. Training with 25 lb bumpers or with change plates only will shave two to four inches off the requirement, which is occasionally the difference that makes an overhead press fit.
What is the shortest power rack I can buy?
Squat stands in the 70 to 74 inch range are the shortest real racks, and they clear a seven foot ceiling with room to lift the bar out. Full cages start around 80 inches and mostly sit between 82 and 93 inches, which is why an 84 inch rack in a 96 inch basement is such a common combination. Remember you also need clearance to tilt the rack upright during assembly.
Should I measure to the joists or to the finished ceiling?
Measure to the lowest obstruction in the space you will actually lift in. In an unfinished basement that is usually a duct run, a beam or a light fixture rather than the joists themselves. Walk the room with a tape and note the low point over the rack footprint specifically, because you can often position a rack in a bay that is three or four inches taller than the room average.
How we choose: we compare published manufacturer specifications, stated load ratings, and verified owner reviews. We do not test equipment in person. Rack anchoring, floor loading and spotting carry real injury and property risk, so treat everything here as researched guidance rather than coaching or structural engineering advice, follow the manufacturer's rated capacity and installation instructions, and get a licensed professional involved before you drill into concrete or load a floor you are unsure about.
