A gym space plan is the floor area each piece of equipment needs once you add the room to stand, walk and lift around it, which is always bigger than the box it ships in. The number that catches people out is not the rack footprint, it is the barbell: a 7 foot Olympic bar is 86.6 inches long, so every barbell lift needs about 9 feet of clear width no matter how small the rack is.

The planner below takes your room dimensions, your ceiling height and your equipment list, then returns square footage used, square footage left, and a fit verdict per item driven by real clearance rules rather than the manufacturer footprint alone. Garage mode removes a parking bay. Basement mode allows for posts, stairs and mechanicals.

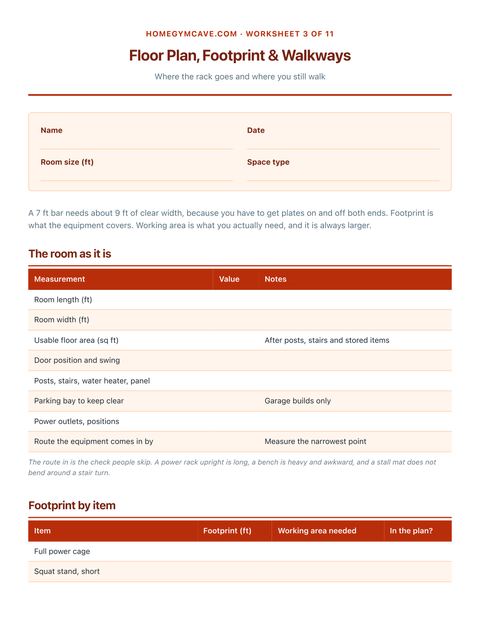

How much space does a power rack actually need?

A full power cage is roughly 48 by 48 inches at the base, which is 16 square feet. That number is useless on its own. You cannot load plates, adjust J-hooks or move a bench in and out with the frame jammed into a corner, so add a 24 inch walk-around on two sides and the working area becomes 72 by 72 inches, or 36 square feet. That is the figure to plan against.

Depth varies more than width. Shallow cages run 24 to 30 inches front to back and are meant to be stood against a wall. Deep cages run 42 to 53 inches and give you room to bench inside the frame with the safeties set. A squat stand like the Titan T-3 73.5 inch stand drops to about 48 by 30 inches with no cage at all, which saves nine square feet and gives up the enclosed safety, so pair one with spotter arms and do not bench alone to failure.

Work an example. A REP PR-1100 at $379.99 is roughly 48 inches wide and 84 inches tall, rated to 700 lb, with 1 inch hole spacing through the bench zone. In a 10 by 10 ft room it occupies 16 square feet of floor and about 36 square feet of working area once you allow the walk-around, which leaves 64 square feet for a bench, a plate tree and somewhere to stand. That is a comfortable build. Put the same rack in an 8 by 10 ft room and it still fits on paper, but the 8 foot dimension is now shorter than the 9 feet a barbell needs, so the bar has to come out along the 10 foot axis and the room only works in one orientation.

The rack also has to be anchored or heavy enough not to walk, and both of those decisions interact with the floor plan. A wall mounted folding rack such as the Titan T-3 folding power rack collapses to about 5 inches of wall depth between sessions, which is why it is the standard answer in a garage that still has to be a garage. The cheaper folding options do the same job with lighter tube. In every case the wall is the real purchase: a folding rack is only as strong as the studs or masonry behind it. See our low ceiling and folding rack picks for the tradeoffs.

Why does a barbell need 9 feet of clear width?

A men's Olympic bar is 86.6 inches long, about 7 feet 2.6 inches, with 51.5 inches between the sleeves. Add collars on both ends, add your hands, and add the few inches you need to walk the bar out of the J-hooks without clipping a wall or a doorframe, and the working minimum is 108 inches, or 9 feet, of clear width across the lifting position.

This is the single most common planning mistake in a small room. People measure the rack, decide a 7 foot wide alcove works, and then discover the bar physically will not come out of the hooks. A women's 15 kg bar at 6 feet 6 inches buys back eight inches. A 5 or 6 foot short bar buys back more but limits plate loading and rack width. There is no bar that makes an 8 foot room comfortable.

What changes when the gym is in a garage?

Two things: the car, and the ceiling. A single parking space is about 9 by 18 feet, or 162 square feet, so a 20 by 20 foot two car garage that keeps one bay for a vehicle is really an 11 by 20 foot gym. That is still 220 square feet and plenty, but the shape is now long and narrow, and the 9 feet of barbell width has to come out of the 11 foot dimension.

The ceiling problem is worse than the floor problem. Garage door tracks run horizontally back along the ceiling, the opener rail runs down the center of the bay, and the door itself in the raised position sits below the joists for the full depth of the track. All three eat exactly the middle of the bay, which is where you wanted the rack. Most garage builds end up along a side wall or in the back corner for this reason.

Plan the floor around the door, not the other way around, and remember that anything on wheels has to roll out of the car's path in under a minute or it will not happen. The garage gym build guide covers the layout, climate and rust decisions together.

What changes when the gym is in a basement?

Basements lose usable area to things you cannot move: a steel lally column in the middle of the span, a stair landing, a furnace and water heater with required service clearance, and a bulkhead over the main duct run. The planner deducts 10 percent for that in basement mode, which is a planning allowance and not a substitute for walking the room with a tape.

More importantly, in a basement the ceiling is usually the harder constraint and the one you cannot design around. Floor space can be rearranged. A duct run at 84 inches cannot. Run the ceiling height calculator before you spend any time on the floor plan, because a room that fails on height fails regardless of how many square feet it has.

Floor loading is the other basement question. A slab on grade is not the issue. A suspended wood floor over a finished room below is, and it is a point load question more than a total weight one. The basement build guide covers ceiling, loading and noise as one problem, because in practice they are.

How much room does a bench really need?

The bench itself is small. An adjustable bench is roughly 20 inches wide by 55 inches long, which is 7.6 square feet, and a folding flat bench is smaller still. What it needs is not the pad footprint but the volume around it: room to sit down at the foot, room to lie back without your head hitting an upright, room to plant your feet wide, and room to get out from under a bar that did not go up.

Budget 24 square feet for a bench used outside a rack, which is about 44 by 79 inches. Inside a cage the bench costs you almost nothing extra, because you are already paying for the rack's working area, so the planner drops it to 8 square feet when a rack is selected. That overlap is the single biggest space saving in a small room and it is the reason benching in the rack is standard rather than optional.

Storage is the other half of the bench question. The REP AB-3100 at $269.99 folds and rolls, which matters in a garage that has to give the floor back. The FLYBIRD foldable flat bench at $75.99 stands upright against a wall in about the footprint of a suitcase and is rated to 600 lb, which is a legitimate answer in a room where nothing can stay set up. A bench that has to be carried out of the way after every session eventually stops being carried, so pick one that moves easily rather than one you intend to be disciplined about.

What does a cable machine or functional trainer need?

More than the footprint suggests, and this is the item that most often fails the planner. A dual column functional trainer like the Body-Solid Powerline PFT100 at $1,595.00 is roughly 70 inches wide and 42 inches deep, so under 21 square feet of floor. The problem is that you have to stand between the columns and pull cables toward you, which means clear space in front of, behind and between the uprights. Plan on 48 square feet of working area, at least 10 feet of width and a 96 inch ceiling, since the top pulley needs headroom above it.

Weight is the other constraint. Commercial specification trainers with dual weight stacks can weigh over 700 lb assembled, which is a floor loading question in a basement and a delivery question everywhere. A wall mounted plate loaded station is the space efficient alternative: it takes no floor at all, but it transfers its entire load into the wall behind it, so studs or masonry and correct fasteners are the whole story. A rack mounted lat pulldown attachment is the cheapest answer of all if you already own a compatible rack, because it adds cable work with zero additional footprint. Our cable machine picks lay out the price cliff between those three options.

Where does everything else go?

Plates are the sleeper space problem. A 260 lb bumper set stacked on the floor occupies about six square feet and blocks the walk-around you carefully planned. Getting them onto a wall is the highest value square footage purchase in the build: a wall mounted plate storage rack at $74.97 holds 800 lb across four pegs, costs less than a pair of bumper plates and gives back floor you were otherwise paying for.

Adjustable dumbbells earn their place on footprint alone. A pair of BowFlex SelectTech 552s at $399.00 covers 5 to 52.5 lb per hand in the space of two shoeboxes, replacing a rack of fixed dumbbells that would consume 15 square feet along a wall. In a room under 100 square feet that is not a preference, it is the only version that fits.

Leave a genuine walkway. A gym you have to shuffle sideways through is a gym where a plate gets dropped on a foot, and the moment you are stepping over a barbell to reach the bench, the layout has failed. Two feet of clear path from the door to the rack is the working minimum, and it should not run through the drop zone. The home gym layout guide covers zoning the room into lifting, storage and traffic in more detail.

What is the smallest home gym that still works?

About 60 square feet, if the shape cooperates. A 10 by 6 foot strip takes a squat stand against the long wall, a folding bench, a barbell and a set of plates on a wall rack, and it still gives the bar its 9 feet of width because the 10 foot dimension carries it. That covers squat, bench, press, row and deadlift, which is a complete strength program.

Below that, the barbell is what has to go. A 6 by 6 foot corner with adjustable dumbbells , a folding flat bench and a wall mounted pull-up bar at $99.99 is a real gym with a real progression path, and it costs a fraction of the barbell build. Add an adjustable kettlebell for swings and carries and you have conditioning as well. The honest breakpoint is the 9 foot dimension, not the square footage total.

The one setup that beats all of these on square footage is a folding wall rack with cables built into the frame. The GOIMU WM3-V4 at $349.99 folds to roughly 4.3 square feet against the wall and opens to about 12.3, with dual plate loaded pulleys in the uprights so cable work does not need a second machine. That turns one wall into the entire gym, which is exactly what a single bay garage or a shared basement room needs. It also means every load in the room runs through the anchors, so the wall behind it is the real purchase and it needs to be verified before anything gets bolted to it.
